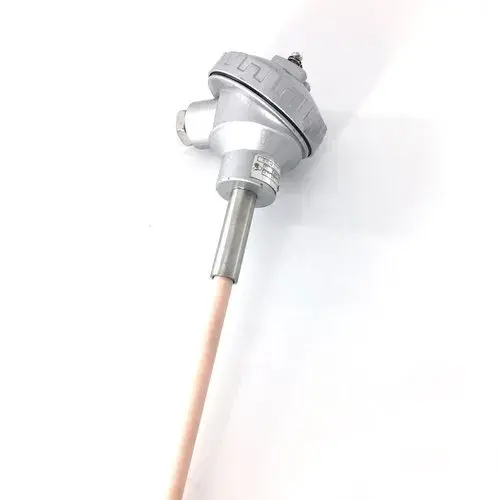

Thermocouple (Ceramic Body)
Contact Person: 01325074100
Ceramic Body Thermocouple is a precision-engineered high-temperature sensor designed for industrial furnaces, kilns, and heat treatment applications. Built with KER710 ceramic insulation and stainless steel probe assembly, it ensures exceptional durability and accuracy in extreme conditions up to 1600°C. Available in R, S, and B types, it provides stable and reliable temperature measurement for critical thermal processes.
Proudly supplied by Hadid Global Limited, Bangladesh’s trusted source for industrial sensors and heaters.
Specification Table
| Feature | Details |
|---|---|
| Product Name | Thermocouple (Ceramic Body) |
| Type | R, S, B Type |
| Temperature Range | 0 – 1600°C |
| Accuracy | ±1.5°C or ±0.25% |
| Class | Class 1 |
| Probe Material | Stainless Steel |
| Material Grade | KER710 Ceramic |
| Outer Sheath Diameter | 24mm / 22mm / 20mm / 16mm |
| Inner Ceramic Tube Dia. | 15mm / 8mm |
| Element Diameter | 0.30mm / 0.40mm |
| Probe Diameter | 0.5 – 8mm |
| Probe Length | 0 – 150mm |
| Mounting Type | Tube Skin |
| Termination | Head Assembly with Socket |
| Assembly Type | Head Assembly with Adjustable Flange |
| Insulation Type | Ceramic 4-Hole Tube |
| Application | Industrial Furnace, Kiln, Curing, Heat Treatment |
| Supplier | Hadid Global Limited |
| Availability | In Stock |
Product Name: Thermocouple (Ceramic Body)
Type: R, S, B Type
Temperature Range: 0°C to 1600°C
Accuracy: ±1.5°C or ±0.25%
Class: Class 1
Probe Material: Stainless Steel
Material Grade: KER710 Ceramic
Outer Sheath (KER710): Dia 24mm, 22mm, 20mm, 16mm
Inner Ceramic Tube (KER710): Dia 15mm, 8mm
Element Diameter: 0.30mm / 0.40mm
Probe Diameter: 0.5 – 8mm
Probe Length: 0 – 150mm
Probe Termination: Head Assembly with Socket
Assembly Type: Thermocouple Head with Adjustable Flange
Mounting Type: Tube Skin Mount
Insulation: Ceramic 4-Hole Tube
Application: Industrial Furnace, Kiln, Foundry, Heat Treatment Equipment
Supplier: Hadid Global Limited
Availability: In Stock
