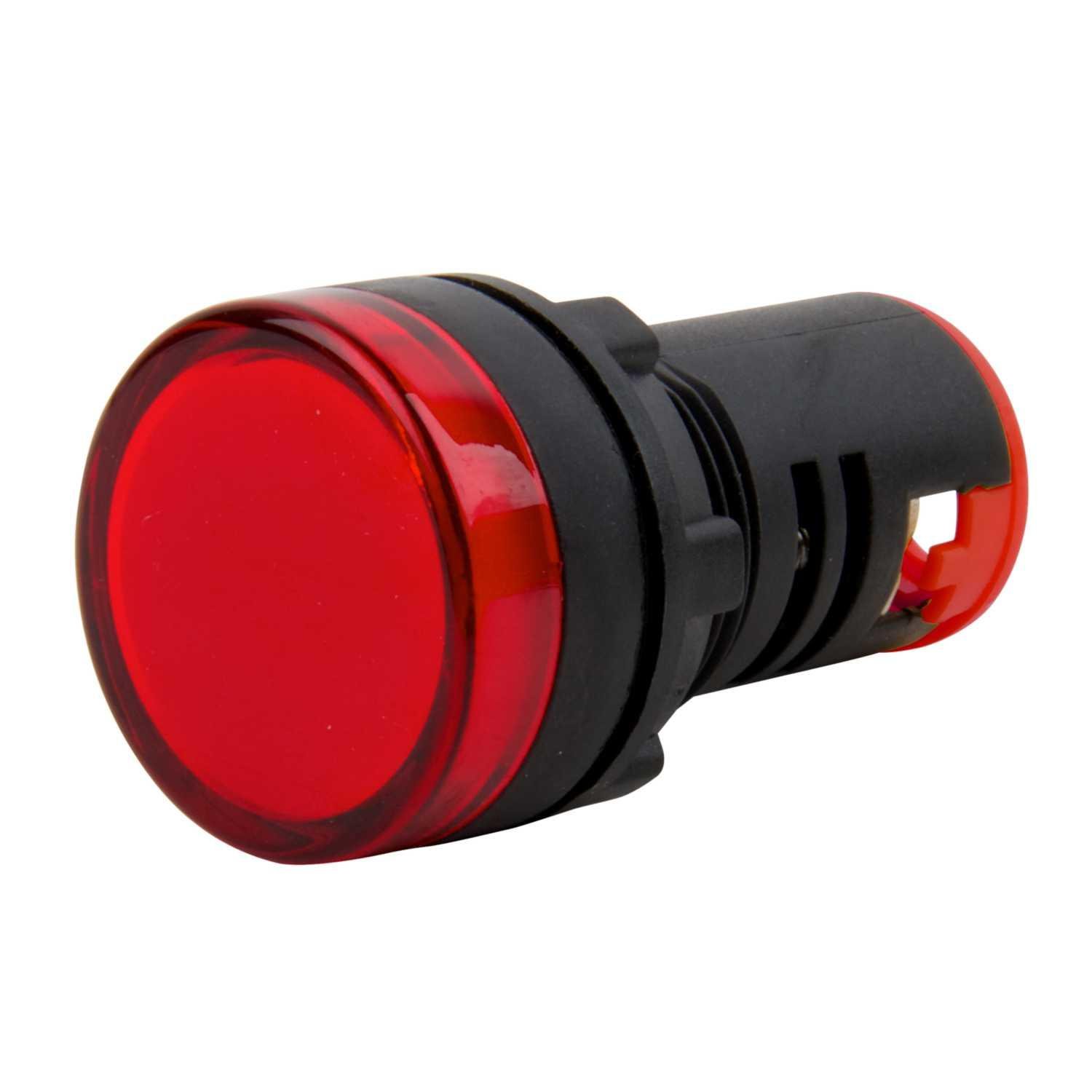

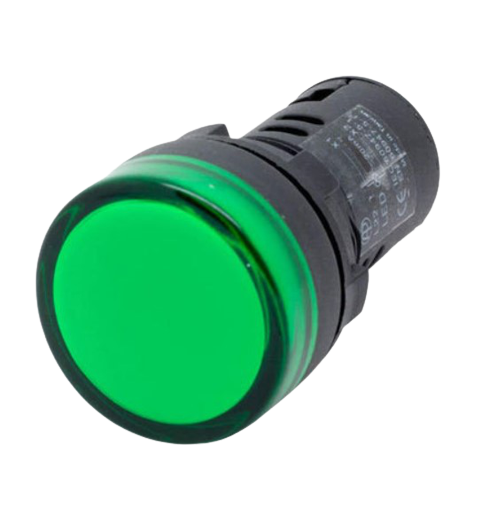

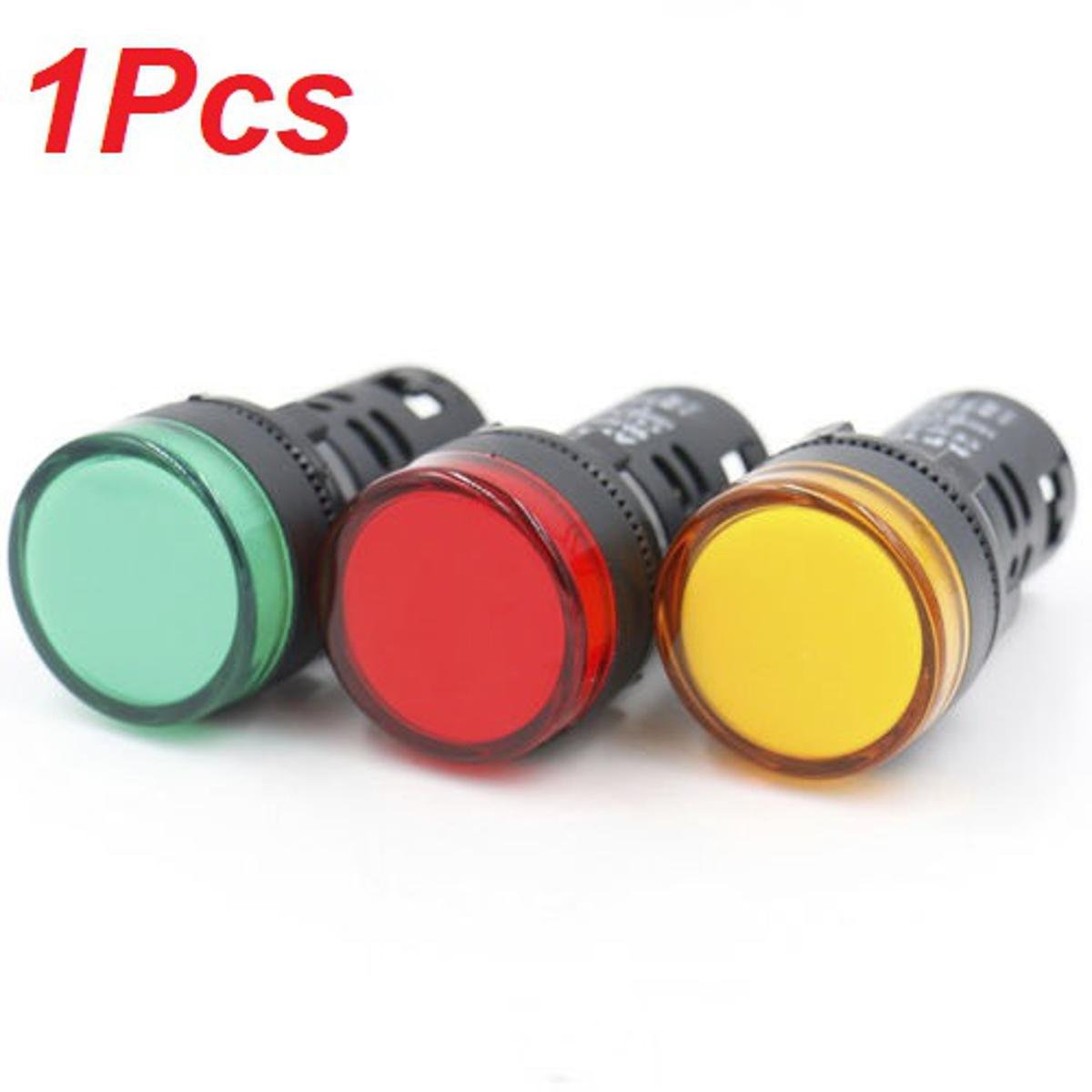

Any Color LED Panel Indicator Light (22mm AC 220V) is a high-quality industrial indicator lamp designed for clear signal display in control panels and heavy-duty equipment. Made in China, this LED light offers bright, even illumination using advanced multi-chip technology and is available in multiple colors — Red, Yellow, Blue, Green, and White.
With CE and CCC certification, IP65 protection, and ABS plastic housing, this indicator is built to last in demanding environments such as power systems, telecommunications, machinery, mining, and marine applications. It features low power consumption, high brightness, and easy installation with a single lock-nut design and screw clamp terminals.
Specification Table
| Feature | Details |
|---|---|
| Product Name | Any Color LED Panel Indicator Light |
| Mounting Diameter | 22mm |
| Voltage | AC 220V |
| Available Colors | Red, Yellow, Blue, Green, White |
| Material (Shell) | Plastic (ABS) |
| Head Protection Index | IP65 (IP67 optional) |
| Panel Thickness | 10mm |
| Brightness | ≥100 cd/m² (More than 60cd typical) |
| Resistor Type | Metal Film, Carbon Film |
| Capacitor Type | Aluminum Capacitor, Polypropylene Capacitor |
| Certifications | CE, CCC |
| Operational Temperature Range | -25°C to +55°C |
| Relative Humidity | ≤98% |
| Vibration Resistance | 2–80Hz, acceleration ≤0.7g |
| Working Life | 30,000 Hours Continuous |
| Insulation Resistance | ≥2MΩ |
| Voltage Withstand | 2.5KV / minute (AC effective value) |
| Allowable Voltage Fluctuation | ±20% |
| CTI Value | ≥100 |
| Country of Origin | China |
| Application Areas | Power systems, Mining, Machine tools, Marine, Textile, Printing, Telecommunications |
Model Size: 22mm Mounting Diameter
Voltage: AC 220V
Available Colors: Red, Yellow, Blue, Green, White
Shell Material: ABS Plastic
Brightness: ≥100 cd/m² (Typical >60cd)
Protection Rating: IP65 (IP67 available upon request)
Certification: CE, CCC
Panel Thickness: 10mm
Working Temperature: -25°C to +55°C
Humidity Tolerance: ≤98%
Resistor Type: Metal Film / Carbon Film Resistor
Capacitor Type: Aluminum / Polypropylene Capacitor
Operating Life: 30,000 hours
Country of Origin: China
