Dual Digital RKC PID Temperature Controller
Contact Person: 01325074100

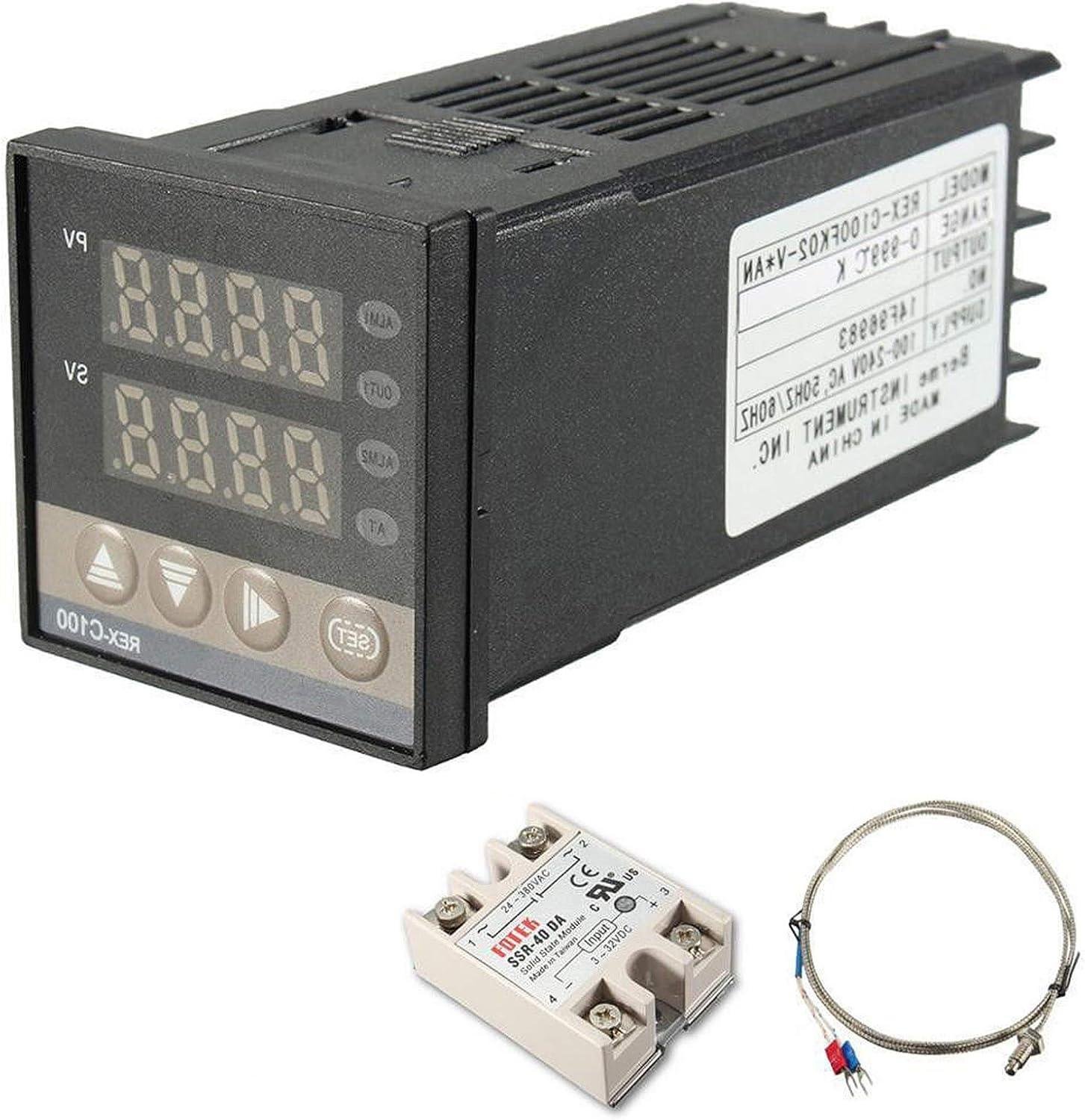

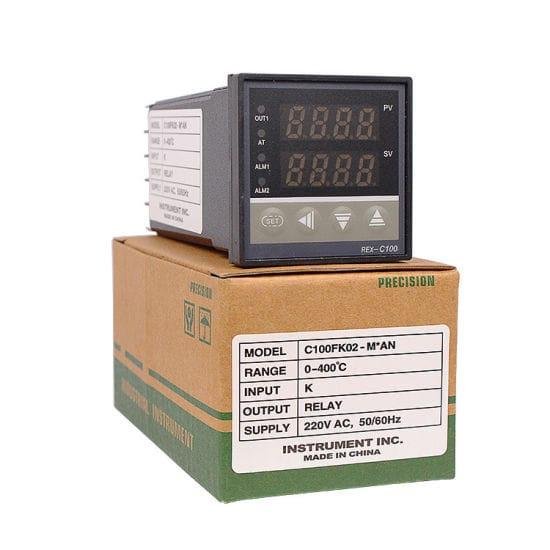

The RKC REX-C100 Dual Digital PID Temperature Controller is a compact and highly reliable temperature control unit designed for precise monitoring and regulation in industrial and laboratory applications.

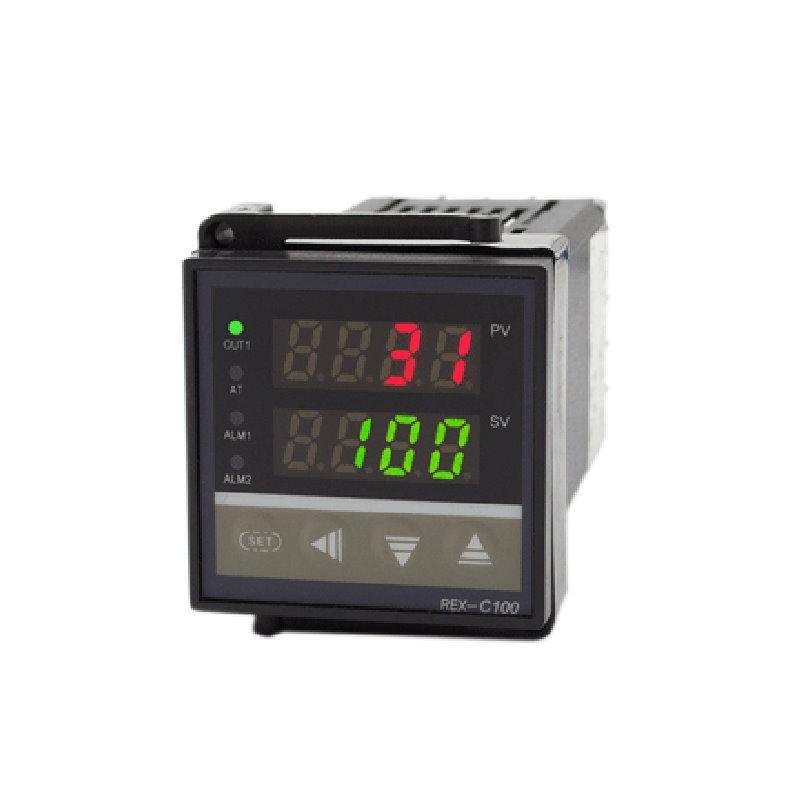

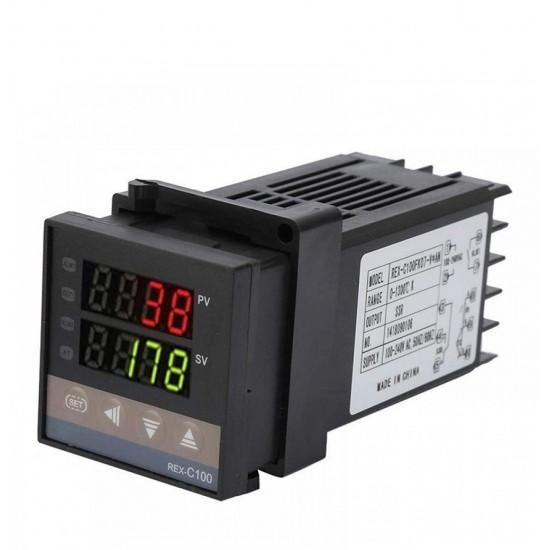

It supports PID (Proportional, Integral, Derivative) control, providing fast response and high stability for both heating and cooling systems. The controller features a dual LED display that simultaneously shows set temperature (SV) and measured temperature (PV) for easy monitoring.
Equipped with a universal input supporting various thermocouple and RTD types, it comes bundled with a K-type thermocouple sensor for up to 400°C measurement range. Its relay output ensures compatibility with heaters, ovens, furnaces, and other temperature-controlled devices.
The REX-C100 is easy to install, programmable, and suitable for multiple industrial processes such as plastic molding, food machinery, packaging, and laboratory temperature management.
Technical Specifications:
| Parameter | Details |
|---|---|
| Brand | RKC |
| Model | REX-C100 |
| Display Type | Dual LED (PV & SV) |
| Display Unit | °C |
| Temperature Range | 0~400°C (K-type thermocouple included) |
| Input Types | TC: K, J, S, E, R, Wre3~Wre25 / RTD: PT100, Cu50 |
| Control Mode | PID / ON-OFF |
| Control Output | Relay |
| Relay Output Capacity | AC 250V/3A or DC 30V/3A |
| Alarm Output | 1 line, 7 selectable modes (High, Low, Interval, Deviation, etc.) |
| Accuracy | ±0.5% FS |
| Power Supply | AC 100–240V, 50/60Hz |

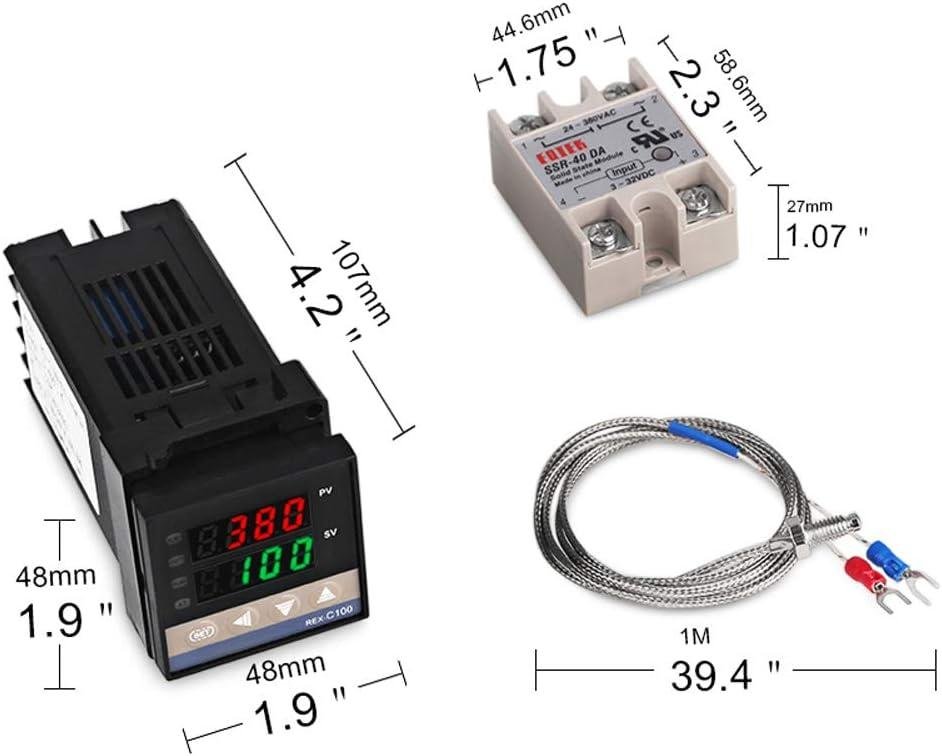

| Dimensions | 48 × 48 × 110 mm (DIN 1/16) |
| Weight | Approx. 200 g |
| Operating Temperature | 0–50°C |

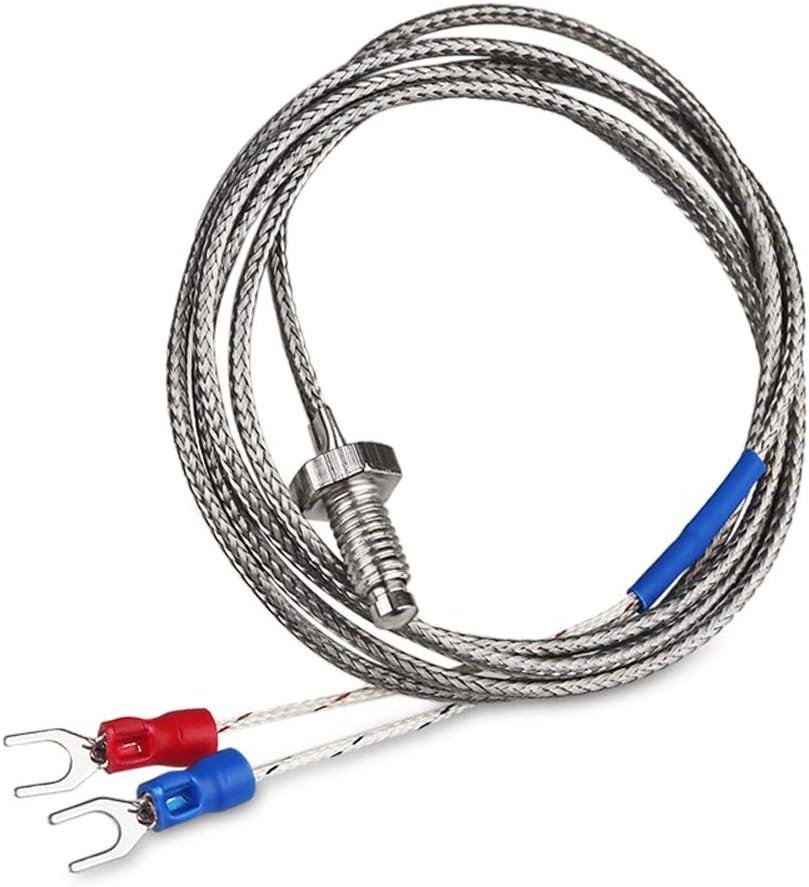

| Included Sensor | K-type Thermocouple (0~400°C, 2m cable) |
| Mounting Type | Panel Mount |
| Material | ABS Plastic Enclosure |
| Usage | Industrial Temperature Control, Ovens, Furnaces, Heaters |
| Country of Origin | Japan (RKC Technology) |
🔥 Accurate PID Control: Maintains stable temperature with ±0.5% accuracy.

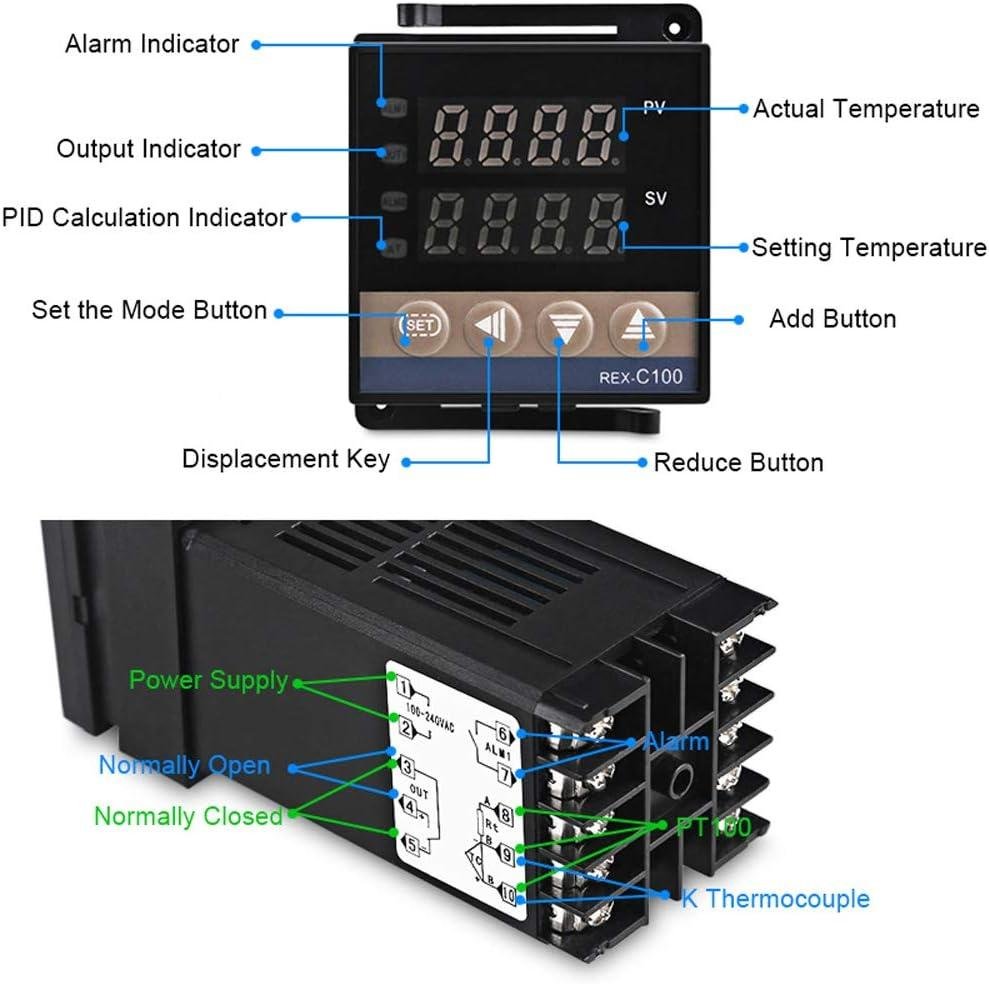

🔁 Dual Digital Display: Simultaneously shows process value (PV) and set value (SV).
🌡️ Wide Input Compatibility: Supports thermocouples (K, J, S, E, R, Wre3–Wre25) and RTDs (PT100, Cu50).
⚙️ Relay Output: Ready for direct connection to heaters and cooling units.
🚨 7 Alarm Modes: High, low, deviation, and breakage alarms for safety and control.
🧭 Adjustable Parameters: Programmable P, I, D, control period, and digital filter coefficients.
💡 Compact DIN Design: Fits standard 48×48mm panel cutouts.
🔌 Easy Installation: Comes pre-wired with K-type thermocouple sensor (2m cable).
